UNDERFLOOR HEATING UNDER TILE HEATING UNDERFLOOR TILE

Underfloor Heating Conservatory wintergarden

Heating technology UnderFloor heating Heating engineering Building technology Installation

Floor heating Electric floor heating Electrical floor heating Electric thin-bed heating mats Tile heating Bathroom heating Thin-bed heating Electric heating Parquet heating Laminate heating Foot heating mat Raychem

UnderFloor heating Anti-chill heating
Not all electric floor heating systems are the same
Electric floor heating is safe, cheap and reliable
Heated floor


The low-cost heating systems for taking the chill of the floor in the bathroom, kitchen, nursery or conservatory (frost protection), with the brand-name thermostat from Eberle.

Electric Underfloor heating for stone floors, tiles, parquet or e.g. even beneath dry floors for renovation of old buildings!

Welcome to the online shop of

Optimum screen resolution 1280 x 1024

Soldron Wärmetechnik Vertriebs GmbH


Open this page to full screen size in a new window.


Homepage:  Tyco Thermal Controls Raychem
( Tyco Electronics Raychem GmbH Raychem HTS )





Saving made easy:
Save with the EURO:
Approx. 2% price saving:
DM divided by 2 = the new EURO prices

[Conditions of sale and delivery]       [PriceList]     [Picture-PriceList as word.doc]  [Look at Set-Offer]       [Detailed product information Laying tips]



Question@soldron.de
please phone the following number if you have any questions:

NB:
There is no charge for postage and packing
on orders of EUR 500 or more.

Please note the full product information at the bottom left.
All prices include VAT.

Please select a product category in the top bar.
To order, click the product name in the dark blue display and select the product category to the right. Select the products by using the "Order" button. The products are then automatically transferred to the fax order menu at the bottom left, which you can print and then fax or send by post. It is easiest, of course, to order by eMail:

Important and interesting - please read:

The ideal room heating
Block-type thermal power generation:

The roof air collector

Please read carefully - important for understanding floor heating:

The benefits of the 3-wire heating mat:
laying of the heating mat (animated sequence),
timed heating of the floor (table),
electricity consumption (cost calculation),
please Click Here:

In each bathroom: 200 Watt 1m² with 531 Instset thermostat including delivery, from EUR 179.80
The anti-chill floor system:

From EUR 63.80 for 1m² - 2 metre lengths
from
120 Watt/m²,
160 Watt/m²,
200 Watt/m²,
300 Watt/m²,
up to 500 Watt/m².

* 2 standard widths 0.3m & 0.5m

* With PE lead (wire mesh coating, shielding)

* High quality

* Low electricity costs

* Comes complete with thermostat & sensor protection tube

* With Laying instructions & Electrical connections diagram
(very easy)!



Programme free of charge:
PDF format

Download:

To save the information in a compact form or to print it - click the appropriate "Info" button to the right:

For Word 6.0 please click here:


Click: Fussbodenheizung-Info -Fussbodenheizung-Montage -Fliesenheizung-Preis Word documents

Still unsure? Still some remaining questions?

EASY FINDER  How? Where? What? & Why?

FAQ Questions & Answers:
Find the ideal  underfloor heating mat and thermostat for your own particular application:
Heating in the bathroom, conservatory, living room or any other room. Click here:


More Info and Animation!



Assembly and Instructions:

   as htm       or as WORD.DOC


www.soldron.de   in English



Montage- et Mode d'emploi:

   htm      WORD.DOC

www.soldron.de   français

Feedback:Comments and opinions from customers about Soldron.

Applicationn areas for heating system:
* Tiled stove heating 500 Watt/m²
* Bathrooms and kitchens
* Selling areas, e.g. butchers
* Offices, wall heating, marble heating
* For low floor heights
* Aesthetic reasons (no radiators)
* Renovation of old buildings (e.g. dry floors)
* Partial floor heating for seating area
* Conservatory anti-chill (frost protection)
Benefits &of the underfloor heating system:
* Quick and easy to lay
* Rapid heating to desired temperature (bathroom in morning)
* Controlled by timer thermostat
* Extremely thin heating mats, 2 mm, 3 mm and 4 mm thick
* CE safety mark, low-cost, maintenance-free
* Conforms to international standards limits etc.
* Warm feet, cool head
* Pleasant house temperature
* Lower temperature possible through high heat radiation



Underfloor Heating

Bear in mind that once you have laid tiles or other flooring types it is no longer possible to install underfloor heating or anti-chill mats.

Test your bathroom floor. How does it feel?
Cool and uncomfortable?

But there is a solution.

Plan for the future!
With prices starting at under EUR 50/m² from 2 m², maybe you too should consider treating yourself to this added comfort!

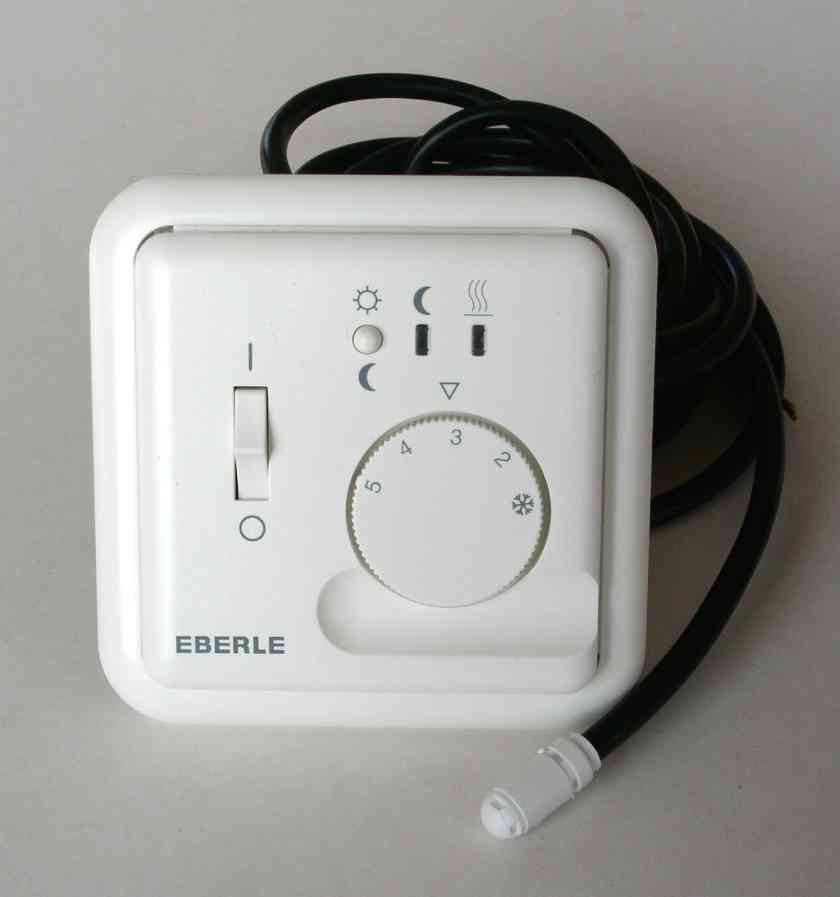

In conjunction with an Eberle timer thermostat programmed to match your precise needs, costs are kept low!



The high quality heating mats:

With 4m cold lead (can be shortened or extended):

electric underfloor heating instead of a standing or a wall-mounted convector heater

Specially designed for quick and simple laying in the bathroom, the rapid and powerful
WT3L
with 160 Watt/m² output.
Possibly in combination with a rapid heater.

All 3 cold lead connection cables are on one side.


The heating wire forms a complete loop in the heating cable; this makes laying simpler as the other end of the cold lead cable does not need to be fed back to the start point.

The magnetic fields cancel each other out!
The electric field is screened by the protective wire coating.
No normal electrical installation cable offers this protection.
Available in 0.5m and 0.3m widths.


The WT3L has a very low profile of just 3mm to 3.5mm.

Heating mats with cotton mesh can be compressed lengthways if necessary.


WT3L electric

UnderFloor Heating

elektric under
                  floor heating

If the installation height must be kept to a minimum

FH TWIN- Protection class II -
All 3 cold lead connection cables are on one side.



Simple to lay:
As a result of the protective mesh the heating mat lies very flat on the floor, yet it cannot be compressed lengthways.


Underfloor Heating



The heating wire forms a complete loop in the heating cable; this makes laying simpler as the other end of the cold lead cable does not need to be fed back to the start point.


The magnetic fields cancel each other out!

The electric field is screened by the protective wire coating.
No normal electrical installation cable offers this protection.


0.5m width
at 160 Watt/m².
in extra thin version with heating cable thickness of just 2,5mm - 2.9mm This saves semi-flexible adhesive when filling and yields benefits in terms of floor height where this is restricted e.g. by doors.

Underfloor Heating


FH TWIN thin-bed under tile heating mat

UnderFloor Heating

Twin under tile heating

NB! New:

Special manufacture 160 W/m²:


FH TWIN
protection class I -
All 3 cold lead connection cables are on one side.

Any areas are possible, e.g.
  • "round showers",
  • "spiral-shaped showers"
  • "diagonal bathtubs"
  • L-shapes, U-shapes, other shaped areas
  • or areas with the connection cable in the centre of the heating area etc.
as customised products based on your drawings, from 0.5m² to 10m² or more.

Please fax us your floor layout plan

Price +200% extra charge for 1m², 10% reduced extra charge on FHT prices for each additional square metre
minus special discount, e.g. set discount
e.g. for 1m², instead of EUR 69.80 + 200%, EUR 209.40
7m² instead of EUR 406.00 + 130% then EUR 933.80
The benefits of the 3-wire heating mat:
laying of the heating mat (animated sequence),
timed heating of the floor (table),
electricity consumption (cost calculation),
please Click Here:
Like warm wave heating

New R-FH-Twin T2 QuickNet Underfloor Heating:


Electric thin-bed heating

If the installation height must be kept to a minimum

R-FH TWIN T2 QuickNet- Protection class II -
All 3 cold lead connection cables are on one side.



Simple to lay:
As a result of the protective mesh the heating mat lies very flat on the floor, yet it cannot be compressed lengthways.



The heating wire forms a complete loop in the heating cable; this makes laying simpler as the other end of the cold lead cable does not need to be fed back to the start point.


The magnetic fields cancel each other out!

The electric field is screened by the protective wire coating.
No normal electrical installation cable offers this protection.


0.5m width
at 160 Watt/m².
in extra thin version with heating cable thickness of just   3,2mm This saves semi-flexible adhesive when filling and yields benefits in terms of floor height where this is restricted e.g. by doors.


T2 QuickNet thin-bed heating mat


UnderFloor Heating


thin bed
                  Underfloor heating mat


Electric underfloor heating, under tile heating technology




Electric under floor heating also possible, low voltage tile heating 36 V

Underfloor Heating




For larger areas (or e.g. dryfloor decking
Fermacell plates,
Soporo plates
Majestic plates
Ultrament plates
Domobau plates
or Wedi plates) , for constant temperatures
in living areas the well-balanced
WTN
at 120 Watt/m² .
Available in 0.5m width
Distance between heating coils 6cm

The WTN has a very low profile of just 3mm to 3.5mm.

If the installation height must be kept to a minimum,

FH thin bed underfloor heating mat protection class I
at 160 Watt/m².
As 0.5m wide model
in extra thin version of only approx. 2,5-2,7mm heating cable thickness! This saves semi-flexible adhesive when filling and yields benefits in terms of floor height where this is restricted e.g. by doors.

Simple to lay:
As a result of the protective mesh the heating mat lies very flat on the floor, yet it cannot be compressed lengthways.


 EPB- protection class I:
(on request)
With protection class 1, specially for sanitation rooms such as saunas, bathrooms, showers etc.
Double insulation and double shielding.
160 Watt/m², approx.2.5mm thick, 30cm wide.
A 4m cold lead connection cable on each side:
On cotton mesh.

Underfloor Heating


WTN underfloor heating
elektric floor heating

FH thin-bed heating mat

UnderFloor Heating mat

WTEPB - sanitation room undertile heating:

wett tile heating

New FH-100 Undertile Underfloor Heating:

Electric thin-bed heating

Underfloor Heating


FH 100 thin-bed heating mat
specially designed for large areas,
anti-chill

From 10m², 12,14,16,18 -20m²  0.5m wide

FH thin bed heating mat protection class I
at only 100 Watt/m² for larger areas.
Available as 0.5m wide model
in extra thin version of only approx. 2,5-2,7mm heating cable thickness! This saves semi-flexible adhesive when filling and yields benefits in terms of floor height where this is restricted e.g. by doors.

Simple to lay:
As a result of the protective mesh the heating mat lies very flat on the floor, yet it cannot be compressed lengthways.


FH 100 thin-bed heating mat
vde

thin bed Undertile heating mat

Underfloor Heating


Electric underfloor heating, undertile heating technology
Specially designed for conservatories or for bathrooms in older buildings with poor thermal insulation beneath the sub floor or where the sub floor is thicker than 4cm.
For the thrifty-minded - the extremely low-cost and high-performance

THERMOFLOOR S or

at160 Watt/m² or 200 Watt/m².

The durable PVC coating gives added strength when laying e.g. on sub floor.
Thickness of3.5mm - 4mm.
Distance between heating coils 6cm
With 4m cold lead (can be shortened or extended):

TFS undertile heating, natural stone heating e.g. in conservatory

elektrische Fliesenheizung TFS


New - without semi-flexible adhesive Laminate-heating, parquet heating :

Electric laminate/parquet heating

AL-T Simply lay the AL-T on the temperature-resistant sound insulation sheet before fitting the decking itself (laminate or parquet).
Then lay the decking directly on top of the heating element.

AL-T Laminate/parquet heating mat
twin-design foil laminated

150 Watt/m².

The durable PVC coating gives added strength.
Very low thickness of 1.5mm - 5mm, sleeve, 4mm lead .
Distance between heating coils 5cm, 4m cold lead cable
From 1 - 8m², 0.5m width

With 4m cold lead (can be shortened or extended):

The magnetic fields cancel each other out!
The electric field is screened by the protective wire coating.
No normal electrical installation cable offers this protection.

Underfloor Heating


AL-T The high-comfort solution for floor types such as laminate or parquet

Under
                Laminate Parquet Heating


New anti-condensation mirror heating:

Electric mirror heating

ABSH
The ideal solution to combat condensation on mirrors, e.g. in the bathroom or shower

ABSH 50   0.45m  x 0.50m
ASBH 100 0.60m  x 0.75m

50 or 110 Watt/m².

Very low cost, simple to fit and extremely effective
The mirror heater is activated along with the light of the cupboard or room light.


With 1.5m cold lead (can be shortened or extended):


AL-T The high-comfort solution for floor types such as laminate or parquet

Antibeschlag Spiegel Heizung





Floor heating, electric heating technology
Specially designed for:
Also for conservatories (where no thermal insulation beneath),
and outdoor areas (to keep free of snow and ice),
or for bathrooms in older buildings with no thermal insulation beneath the sub floor or where the sub floor is thicker than 5cm.
The equally low-cost yet high-power
TF/R 3-L
at300 Watt/m².
Please phone for details.

The durable PVC coating gives added strength.
All three connection cold leads attached at one end.
Thickness of 6mm.
With 4m cold lead (can be shortened or extended):

Underfloor Heating





On request:



300 Watt/m² TF/R heating mat from 2-8m², 0.5m wide, 230 Volt.
300 Watt/m² TF/R heating mat from 2-14m², 0.5m wide, 400 Volt.

Ceiling heating, 150 Watt/m² from 0.75-1.5m², 0.5/0.6m wide, 230 Volt.
Parquet heating, 150 Watt/m² from 1-6m², 0.5 wide, 230 Volt.
Only with parquet heating do dummy elements need to be laid at the positions where no parquet heating is fitted!


snow
                  und ice heating mat


For all heating mats:

The heating wires are totally insulated and also feature special screening (in the form of a wire mesh, similar to a co-axial TV cable). It is also earthed and enclosed in a protective coat, making it FI-compatible!



Underfloor Heating







The ideal gift
for birthdays or Christmas etc.

When sitting in front of the computer in the cellar
When watching TV
in the mobile home -

the foot heating mat


or

Fireplace bench heating
Church organ bench heating
Church heating
Corner seat heating

Office heating mat
heated foot mat

0.25m x 1.0m 50 Watt

0.4m x 0.6m 75 Watt

0.6m

0.5m x 0.7m 65 Watt  or
0.6m x 0.9m 95 Watt
7mm thickness, approx. 2m cable

Heated rubber mat
Rubber heated mat, rubber mat
0.5m x 0.5 m 50 Watt


Heated carpet underlay

("heated carpet - carpet heating")

1.30m x 1.80m 480 Watt
2mm thickness, approx. 4m cable
More info

More info

Feetwarming Mat




Soldron heating regulator Dimmer  Socket dimmer N2003S :


AC voltage control element Rotation controller Power control element Power regulator Speed regulator Motor controller Motor control element AC voltage regulator

The high-power heating power regulator for foot & office heating mats and especially for the WTU 480 underlay heating system

Simply plug between the socket and heating mat and turn the dial to adjust the heating power to suit your own personal comfort level.

Switching power: powerful 2000 Watt for ohmic appliances such as heating mats, halogen lamps, spot lamps.

For infinite setting, regulating or controlling
of ohmic and inductive loads such as

  • Spotlights
  • Light control systems
  • Garden pumps
  • Pond pumps
  • Electric tools
  • Heaters (not heating fans)
  • Vibration conveyors
  • Universal & shaded-pole motors
  • Angle grinders etc.
  • Ventilators
More info
More info

Socketdimmer Dimmer
                Regulator





The benefits of the 3-wire heating mat:

Laying the heating mat (animated sequence).

Timed heating of floor (table),

Electricity consumption (cost calculation),
pleaseClick here:




Find a low-cost power provider (Germany):

http://stromtabelle.de/rechner.htm

http://www.stromtip.de

http://www.billig-strom.de



A brief example to explain electricity consumption costs!
bathroom heating:
At a power cost of approx. € 0.15/kWh and a heating period of 30 minutes for taking the chill off the bathroom floor, this would result in total output of 600 Watt/unit, i.e. 4.5 cents per day.

The heating mats must first use all their power to warm up the cold sub floor and the tiles to 27°C. In this case, the system would probably heat for the entire duration. (Warm-up)
Assumes thermal insulation beneath sub-floor.

Second example:
At a power cost of approx. € 0.15/kWh and a heating period of 300 minutes for taking the chill off the living room floor, this would result in total output of 1600 Watt/unit (10m²), i.e. 15 cents per day.

We assume that the living room is heated to a temperature of 22°C by a different heating source, and that the floor is warmed to 24°C.
The heating mat then only needs to replace 200 Watts for 10m² "loss-compensation" (heat which escapes into the living room). (Maintaining temperature)
Assumes thermal insulation beneath sub-floor.





Brand name regulator from Eberle

Mounted types:


AP mounted thermostat
for electric under floor heating and anti-chill systems.

The floor temperature is measured by the NTC sensor and regulated by means of the EB 52521/31 electronic thermostat. The sensor of the thermostat is laid in the floor beneath the heating wires in the sensor protection tube, directly beneath the heating layer. The floor temperature can be set on the thermostat to meet your personal requirements and those of the particular room (living room or bathroom)

.

At 120 Watt/m² 27m² possible
At 160 Watt/m² 20m² possible
At 200 Watt/m² 16m² possible
Larger areas possible with power protection!

  • To measure under floor temperature
  • 16 A switched current
  • 3.3 kW switching power
  • 4m sensor cable (can be shortened or lengthened)
  • Mains switch and pilot lamp "Thermostat demands heating"
  • Range confinement in adjustment button
Simplicity itself: but switches a powerful 16 Amps
simply set the temperature turn on or off

EB 52531
Under
                  Floor Heating Regler EB531

AP mounted thermostat
for electric under floor heating under tile heating and anti-chill systems.




No loss of comfort or convenience but highly economical because timed operation is ensured by the special EASY 3 ft timer thermostat. The unit should be set so that the heating is automatically switched on 30 minutes before use by the electronic thermostat. The unit switches off again automatically during or after use, preventing any unnecessary heating. You can also switch the heating on and off outside the times set on the timer, of course.


At 120 Watt/m² 27m² possible
At 160 Watt/m² 15m² possible
At 200 Watt/m² 12m² possible
Larger areas possible with power protection!

  • With quartz clock
  • for daily EASY 3 ft or weekly program 52528
  • Range confinement in adjustment button
  • To measure floor temperature
  • 10A switched current
  • 4m sensor cable (can be shortened or lengthened)
  • 2.4 kW switching power
Simple operation: Daily timer thermostat with switch rider
simply set the temperature and turn on or off, or use the timer

EB EASY 3 ft
Fussbodenheizung-Regler-EB-EASY-3-ft


Fussbodenheizung Regler
or
Acrobat Reader
Technical Specifications in PDF format:



Assembly
                  and Instruction

EB 52527 (old)
Fussbodenheizung Regler EB527


Embedded models:


New:

EB 52535 Instant 8 thermostat
for electrical underfloor heating and under floor heating systems or
room temperature thermostat for electrical floor heating

No loss of comfort or convenience but highly economical because timed operation is ensured by the special EB 52535 FRe Instat 8timer thermostat. The unit should be set so that the heating is automatically switched on 30 minutes before use by the electronic thermostat. The unit switches off again automatically during or after use, preventing any unnecessary heating. You can also switch the heating on and off outside the times set on the timer, of course.

At 8 Amps, only smaller areas are possible.
At 120 Watt/m² 15m² possible
At 160 Watt/m² 11m²possible
At 200 Watt/m² 9m² possible
Larger areas possible with power protection!



Wide range of setting options, please read carefully!

Features:


  • To measure floor temperature
  • 8 A switched current
  • 1.8 kW switching power
  • 4m sensor cable (can be shortened or lengthened)
  • Timer thermostat for three applications: room temperature regulator, floor temperature thermostat and room thermostat with floor temperature limiter
  • Weekly program and separate daily program
  • Five factory preset programs
  • Free choice of 6 times for each day, with block-building
  • An extra day program (for special occasions such as holidays and national holidays)
  • 3 temperature settings (comfort, standard, night)
  • Ready for immediate use with standard program
  • Manual operation for: changing temperature up to next switching time or permanent change of temperature
  • Smart heating curve (the temperature is reached at the set time)
  • Control characteristic curve ( 2-point or fuzzy regulator PID similar to PWM
  • Clear LCD display, simultaneously showing: room temperature, time, day, mode, time zone, target temperature range
  • Display can be switched from room temperature to target temperature
  • Come/go function
  • ON/OFF switch
  • Holiday function (frost protection)
  • Unauthorised use protection
  • Manual operation and party function
  • Valve protection function (with hot water heating)
  • Choice of two regulation modes, therefore suitable for almost all types of heating
  • Heating - Cooling switching (with air conditioner)
  • Simple, menu-based operation using 4 keys
  • Frost protection for up to 199 days
  • Operating hours meter
  • Remote sensor operation possible
  • Colour - pure white, similar to RAL 9010
  • Assembly only possible in UP box of 55mm diameter
  • Underfloor Heating



The low-cost all-rounder:
Daily/weekly timer (programs)
With the advantage of being able to switch from floor to room temperature thermostat (floor temperature limited to programmed value)
Wide range of settings available!







EB 52535  INSTAT8



To detailed description and assembly/operating instructions for INSTAT8:


Wiring: INSTAT8
simplified connection diagram and rear view:



Assembly and operating instructions in WORD95 format:

or
Acrobat Reader


Technical Specifications in PDF format:

Assembly and operating instructions in PDF format:

Manual de instruccions y de instalacion Instat 8

Istruzioni Istruzioni per L´uso e l´installazione Instat 8

Assembly
                    and Instruction Tech Data

Assembly
                    and Instruction User Manual


A Mode d'emploi dt d'installation




EB 52512 thermostat
for electric under tile heating and anti-chill systems.

No loss of comfort or convenience, yet highly economical because timed operation is ensured by the EB FRe 52512 timer thermostat. The unit should be set so that the heating is automatically switched on 30 minutes before use by the electronic thermostat. The unit switches off again automatically during or after use, preventing any unnecessary heating. You can also switch the heating on and off outside the times set on the timer, of course.

At 120 Watt/m² 20m² possible
At 160 Watt/m² 15m²possible
At 200 Watt/m² 12m² possible
Larger areas possible with power protection!

  • For measuring Floor temperature
  • 10A current
  • 2.4 KW breaking capacity
  • 4m sensor cable (can be shortened or lengthened)
  • Timer switch for reducing temperature to energy-saving 15 or 19°C
  • Optional: Weekly or daily programcan be selected (with the same thermostat)
  • Range confinement in setting button
  • Block building possible
  • 4/6 on and 4/6 off times
  • Manual operation
  • Holiday timer
  • Assembly only possible in UP box of 55mm diameter
The balanced system - easy to operate: Daily timer thermostat Weekly timer thermostat
Simply set the temperature and turn on or off, or use the timer

EB 52512
thermostat Eberle 52512



To detailed description and assembly/operating instructions for EB 52512:

Wiring: EB 52512
simplified connection diagram and rear view:

or
Acrobat Reader
Technical Specifications in PDF format:

Assembly and operating instructions in PDF format:


Assembly
                    and Instruction




Underfloor Heating



EB F2A thermostat
for electric underfloor heating and anti-chill systems.

The floor temperature is measured by the NTC sensor and regulated by means of the EB F2A electronic thermostat. The sensor of the thermostat is laid in the floor beneath the heating wires in the sensor protection tube, directly beneath the heating layer. The floor temperature can be set on the thermostat to meet your personal requirements and those of the particular room (living room or bathroom)

.

At 120 Watt/m² 30m² possible
At 160 Watt/m² 22,5m²possible
At 200 Watt/m² 18m² possible
Larger areas possible with power protection!

  • To measure the floor temperature
  • 16 A switched current
  • 3,6 kW switching power
  • 4m sensor cable (can be shortened or lengthened)
  • Mains switch and pilot lamp "Thermostat demands heating"

  • Range confinement in setting button
Simple operation:
simply set the temperature and turn on or off

EB F2A
Fussbodenheizungsregler F2A

oder
Acrobat Reader
F2A F2T Technical Data in PDF-format:

Operating in PDF-format:

Assembly and Instruction






EB F2T thermostat with timer
for electric under floor heating and anti-chill systems.

The floor temperature is measured by the NTC sensor and regulated by means of the EB F2T electronic thermostat. The sensor of the thermostat is laid in the floor beneath the heating wires in the sensor protection tube, directly beneath the heating layer. The floor temperature can be set on the thermostat to meet your personal requirements and those of the particular room (living room or bathroom)

.

At 120 Watt/m² 30m² possible
At 160 Watt/m² 22,5m²possible
At 200 Watt/m² 18m² possible
Larger areas possible with power protection!

  • To measure the floor temperature
  • 16 A switched current
  • 3,6 kW switching power
  • Timer function 5°C less in the night
  • 4m sensor cable (can be shortened or lengthened)
  • Mains switch and pilot lamp "Thermostat demands heating"

  • Range confinement in setting button
Simple operation:
simply set the temperature and turn on or off

EB F2T &Timer Function
Eberle Fussbodenregler R2T


oder
Acrobat Reader

oder
Acrobat Reader
F2A F2T Technical Data in PDF-format:

Operating in PDF-format:




Assembly and Instruction







Underfloor Heating



From OJ

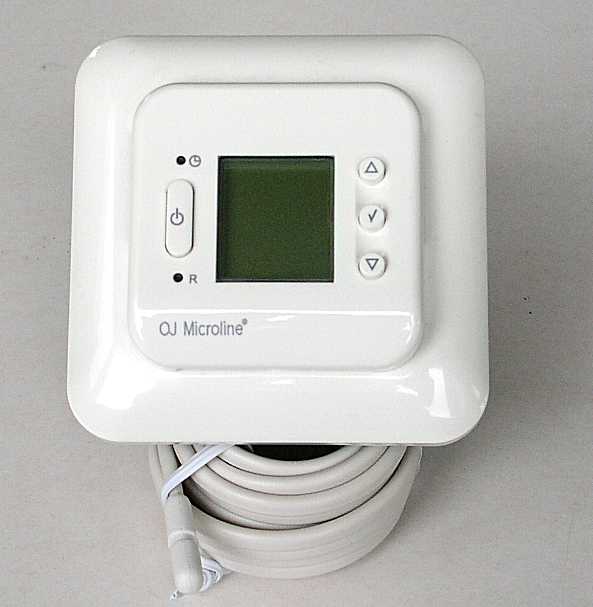

OJ OCC2D2 thermostat
or electrical underfloor heating and under tile heating systems or
room temperature thermostat for electrical floor heating

No loss of comfort or convenience but highly economical because timed operation is ensured by the special OJ OCC2D2timer thermostat. The unit should be set so that the heating is automatically switched on 30 minutes before use by the electronic thermostat. The unit switches off again automatically during or after use, preventing any unnecessary heating. You can also switch the heating on and off outside the times set on the timer, of course.

.

At 120 Watt/m² 30m² possible
At 160 Watt/m² 22,5m²possible
At 200 Watt/m² 18m² possible
Larger areas possible with power protection!

  • To measure the floor temperature
  • 16 A switched current
  • 3,6kW switching power
  • Floor- or Roomthermostat (only from Soldron)
Timer thermostat for three applications: room temperature regulator, floor temperature thermostat and room thermostat with floor temperature limiter
  • 4 Event Timer
  • 4m sensor cable (can be shortened or lengthened)
  • Mains switch and pilot lamp "Thermostat demands heating"

  • Range confinement in setting button
Simple operation:
Daily/weekly timer (programs)
With the advantage of being able to switch from floor to room temperature thermostat (floor temperature limited to programmed value)
Wide range of settings available!

OJ OCC2 OCD2

Ambient and / or Floor Sensing
You get 2 function in one thermostat (Floor or Room) only from Soldron
by other dealer you must decide between OCC2 (floor) and OCD2 (room)

OCC2 OCD2 1999

oder
Acrobat Reader
OCC2D2 Technical Data in PDF-format:

Operating in PDF-format:

Assembly and
                Instruction






Underfloor Heating




OJ OTN thermostat
for electric under floor heating and anti-chill systems.

The floor temperature is measured by the NTC sensor and regulated by means of the OJ OTN F2A electronic thermostat. The sensor of the thermostat is laid in the floor beneath the heating wires in the sensor protection tube, directly beneath the heating layer. The floor temperature can be set on the thermostat to meet your personal requirements and those of the particular room (living room or bathroom)

.

At 120 Watt/m² 30m² possible
At 160 Watt/m² 22,5m²possible
At 200 Watt/m² 18m² possible
Larger areas possible with power protection!

  • To measure the floor temperature
  • 14 A switched current
  • 3,2 kW switching power
  • 4m sensor cable (can be shortened or lengthened)
  • Mains switch and pilot lamp "Thermostat demands heating"

  • Range confinement in setting button
Simple operation:
simply set the temperature and turn on or off

OJ OTN
OJ OTN

oder
Acrobat Reader
OTN Technical Data in PDF-format:

Operating in PDF-format:

Assembly and
                Instruction













New:

Raychem TC T2 DigiTemp PLUS°


o loss of comfort or convenience but highly economical because timed operation is ensured by the special TC DigiTemp PLUS° timer thermostat. The unit should be set so that the heating is automatically switched on 30 minutes before use by the electronic thermostat. The unit switches off again automatically during or after use, preventing any unnecessary heating. You can also switch the heating on and off outside the times set on the timer, of course.

.

At 120 Watt/m² 30m² possible
At 160 Watt/m² 22,5m²possible
At 200 Watt/m² 18m² possible
Larger areas possible with power protection!

  • To measure the floor temperature
  • 16 A switched current
  • 3,6kW switching power
  • Floor- or Roomthermostat (only from Soldron)





Automatic sensing of sensor mode (floor or room)

  • Manual ON/OFF by 2-pole main power switch

  • Blue back light display

  • Built-in timer function–4 selectable pre-programmes–1 user specific programme daily editable in time blocks of 30 minutes

  • Adaptive function in order to reach the desired temperature at the desired time

  • Booster function for fast heat up (+5°C for max 2 hours)

  • Read-out of actual floor sensor temperature

  • Monitoring of floor or room sensor. In the event of failure of anactive sensor, the underfloor heating system is switched off

  • Possibility to lock the settings eg public buildings


  • Busch-Jaeger Reflex SI alpinweiß, poliert
  • Merten Atelier 3972 19, polarweiß
  • Merten M1 3972 18 RAL 9010, poliert
  • Eljo  Trend
  • Elko  Rs, L57 1
  • Gira ST55 Standart,  E2
  • Jung AS
  • ect.

Underfloor Heating



Simple operation:
Daily/weekly timer (programs)
With the advantage of being able to switch from floor to room temperature thermostat (floor temperature limited to programmed value)
Wide range of settings available!




TC Raychem

Ambient and / or Floor Sensing



T2 DigiTemp PLUS° Timer Thermostat





Raychem T2 TC
T2 Tc Digitemp
                  Plus°



oder
Acrobat Reader
TC Technische Daten im PDF-Format:

Bedienung im PDF-Format:



Assembly and Instruction Tech Data:


Assembly and Instruction User Manual
Englisch, Deutsch, Francais, Nederlands, Norsk, Svenska,  Dansk, Soumi, Polski, Russisch:









T²FloorTemp PLUS° thermostat
for electrical undertlie heating and floor heating systems or
room temperature thermostat for electrical underfloor heating

The floor temperature is measured by the NTC sensor and regulated by means of the T²FloorTemp PLUS electronic thermostat. The sensor of the thermostat is laid in the floor beneath the heating wires in the sensor protection tube, directly beneath the heating layer. The floor temperature can be set on the thermostat to meet your personal requirements and those of the particular room (living room or bathroom)

.

At 120 Watt/m² 25m² possible
At 160 Watt/m² 19m²possible
At 200 Watt/m² 15m² possible
Larger areas possible with power protection!

  • To measure the floor temperature
  • 13 A switched current
  • 3.0 kW switching power
  • 3m sensor cable (can be shortened or lengthened)
  • Mains switch and pilot lamp "Thermostat demands heating"


    • For floor sensing or room sensing applications based on 3 m floor
      sensor and built in room sensor

    • Manual ON/OFF by 2-pole main power switch

    • Setback function (–3.5°C) via remote timer

    • Booster function for fast heat up (+5°C for max 2 hours)

    • Read-out of actual floor sensor temperature

    • Monitoring of floor or room sensor. In the event of failure of an
      active sensor, the underfloor heating system is switched off

    • Possibility to lock the setting eg public buildings

  • Busch-Jaeger Reflex SI alpinweiß, poliert
  • Merten Atelier 3972 19, polarweiß
  • Merten M1 3972 18 RAL 9010, poliert
  • Eljo  Trend
  • Elko  Rs, L57 1
  • Gira ST55 Standart,  E2
  • Jung AS
  • ect.

Underfloor Heating



Simple operation:
simply set the temperature and turn on or off

TA Raychem

Ambient  or Floor Sensing

 T2  FloorTemp Plus° Comfort Thermostat

Raychem T2 TA
TA T2 FloorThem
                  PLUS°


oder
Acrobat Reader
TA Technische Daten im PDF-Format:

Bedienung im PDF-Format:



Assembly and Instruction Tech Data:


Assembly and Instruction User Manual
Englisch, Deutsch, Francais, Nederlands, Norsk, Svenska,  Dansk, Soumi, Polski, Russisch:













New:






T²FloorTemp thermostat

for electrical under floor heating and undertile heating systems or
room temperature thermostat for electrical floor heating

The floor temperature is measured by the NTC sensor and regulated by means of the T²FloorTemp electronic thermostat. The sensor of the thermostat is laid in the floor beneath the heating wires in the sensor protection tube, directly beneath the heating layer. The floor temperature can be set on the thermostat to meet your personal requirements and those of the particular room (living room or bathroom)

.

At 120 Watt/m² 30m² possible
At 160 Watt/m² 22m²possible
At 200 Watt/m² 18m² possible
Larger areas possible with power protection!

  • To measure the floor temperature
  • 16 A switched current
  • 3.6 kW switching power
  • 3m sensor cable (can be shortened or lengthened)
  • Mains switch and pilot lamp "Thermostat demands heating"

  • Range confinement in setting button

Underfloor Heating


Simple operation:
simply set the temperature and turn on or off

T²FLOORTEMP

T2FLOORTEMP

To detailed description and assembly/operating instructions for T²FLOORTEMP:

Wiring: T2
simplified connection diagram and rear view:

or
Acrobat Reader
Technical Specifications in PDF format:


Assembly
                  and Instruction

A


Into the sub-distributor:

Regulator for carrier rail mounting EB ITS & EB ITU on request:






Relay component 16 A:

Relay component 16 A, coil voltage 220 V, 50 Hz
1 make-contact element with max. 16 Amp switched current
complete with 4 connecting wires
With these relay elements the 10A regulator can once again switch the 16A, thereby increasing the maximum space to be heated.

Ideal for installation in the 100 x 100 embedded junction box to which the heating mats
are connected.
This saves the additional laying leads to the meter box and back because of a meter box relay - especially given that this is often not possible later.

Not available until November at the earliest!

Area at 10 A:

At 120 Watt/m² 20m² possible
At 160 Watt/m² 15m²possible
At 200 Watt/m² 12m² possible

Area at 16 A:

At 120 Watt/m² 27m² possible
At 160 Watt/m² 20m² possible
At 200 Watt/m² 16m² possible

Further information on connections etc. Click here:


Underfloor Heating

16 A Relais



Further sites on this topic in the Internet
DIY stores (questions and answers)
Laying tiles and boards
Laying floor tiles

Please note the full product information at the bottom left.
All prices include VAT.

To order, click the product name in the dark blue display and select the product category to the right. Select the products by using the "Order" button. The products are then automatically transferred to the fax order menu at the bottom left, which you can print and then fax or send by post.

[Conditions of sale and delivery]     [PriceList]     [Picture-PriceList as word.doc]  [Look at Set-Offer]        [Detailed product information Laying tips]






Please read carefully - important for understanding under floor heating:

If 160 Watt/m² floor heating is fitted in a room with floor tiles, the heating only consumes 160 Watt/m² during the warm-up period, e.g. from 18°C to the target floor temperature of 24°C.

At 160 Watt/m² rating this is of course correspondingly faster than 120 Watt/m² - and you save time in the warm-up phase.

Subsequently the floor heating, i.e. from the surface of the floor tiles, only releases approx. 10 Watt/m² heating power into the room for each degree Celsius warmer than the room itself.

Roughly half of the heat is released into the room in the form of infrared heat, i.e. radiant heat.

If the temperature in the room is 22°C and the floor is 24°C, the floor heating would then only release 20 Watt/m² into the room.

If the room is warmed e.g. by the sun to 24°C, the floor heating will release no more heat at all into the room and therefore not consume any more electricity. This is the self-regulation effect of floor heating."

The high percentage of radiant heat in underfloor heating means that the room temperature can easily be turned down by several degrees to e.g. 20°C, and it will still be perceived as pleasantly warm.

A floor temperature of 21°C is felt as warm (the emphasis here is on the feeling of comfort created by under floor heating - the prime source of heating is e.g. radiators).

In this case the floor heating would only release 10 Watt/m² into the room.

With a heating area of e.g. 10 m² and a rating of 10 Watt/m² this would result in electricity costs of 15 cents for 10 hours at a price of 15 cents/kHz.
This assumes adequate thermal insulation beneath the floor base.

In an extreme case, a 160 Watt/m² floor heating system would heat a room from 20°C to 36°C (i.e. one degree per 10 Watts) if it were not limited by the thermostat to approx. 28-29°C.

If the floor plate is thick enough, e.g. 8cm (e.g. heating base from Knauf) and if the customer has access to suitably low-cost storage heating electricity, it is also possible to heat an entire apartment or individual rooms with night storage underfloor heating. The investment costs are relatively low. If the intention is to use the underfloor system as the main source of heating, it is important to use low-cost night storage current.

The consumption costs: i.e. one litre of heating oil provides 10kW/h of chemical energy although only 80-90% is actually used as heat in the flat (boiler, radiation and chimney losses). In the case of electricity, however, 100% is given up to the floor surface. And there are no costs for chimney sweeps, boiler maintenance or fume emission measurement.

Important note: To all people undertaking building and renovation work - reduce your heating costs!

BKHW: Block-type thermal power generation

Instead of oil or gas heating - use a block-type thermal generation system: it makes economic and ecological sense!

Generate your own electrical current!

Consume electricity which you have generated yourself and reclaim the oil and ecology taxes for the heating cost consumption!

EUR 6 back on every litre!

Feed your excess electricity back into the public grid and get extra moneyfor your heating cost budget.

Interested in more information?


Underfloor Heating





If you are satisfied with the quantity and quality of the information in this website please send us a short email letting us know your opinion!
Click here:Question@soldron.de
If you have any questions please give your telephone number:

soldroN
Heating equipment
Soldron Wärmetechnik Vertriebs GmbH
Ringstraße 17,  97950 Großrinderfeld
Tel/Fax: 09349/ 768

even in the evenings
or at the weekend





Raychem homepage:

The low-cost temperature maintaining and frost protection systems
Pipe heat tracing systems Frost protection band from Tyco Raychem

Raychem HTS Tyco HWAT-Plus WinterGard Eisstop OTB TraceTek ViaGard WinterGuard 8BTV2-CT AutoSol
The low-cost, self-regulating, temperature-maintaining and self-limiting frost protection systems

Pipe heating systems, Heating band, Frost protection band, Guttering heating band, Warm water heating band, Temperature maintenance band, Heating band, Warmth retaining band, Temperature maintenance, CO-heating, Facade heating, Ramp heating, Facade heating band, Heating band, Hot water heating, Guttering heating, Guttering co-heating, Drainpipe heating, Drain pipe co-heating, Gutter co-heating band, Drain heating, Grease heating, Sink drain heating, Grease drain coheating band, Sink drain co-heating band


System OTB
Self-regulating frost protection system for oil tanks and oil pipes
System HWAT-Plus
Hot water temperature maintenance
System WinterGard
Self-regulating frost protection system
for pipes
System EisStop
Self-regulating frost protection system
gutters and downpipes
 Raychem HTS Tyco HWAT-Plus WinterGard Eisstop OTB TraceTek ViaGard 8BTV2-CT AutoSol
System TraceTek System ViaGard
Ramps, paths
Free of snow and ice
System AutoSol
Self-regulating floor heating system
Assembly instructions

Heating technology: Self-regulating, self-limiting heating bands

Hot-water co-heating
The new HWAT-Plus system was developed specially to meet international requirements. It
is directly available on opening the hot water tap. The economical, reliable and space-saving solution for
new buildings and redevelopment.

Ensure gutters stay free of ice during the winter
To prevent danger and damage caused by snow and ice on gutters and drain pipes. The EisStop system is simple to
fit and has a robust design.

Frost protection and temperature maintenance for pipes.
The WinterGard system can be used in all areas to provide proven and reliable frost protection for pipes, e.g. for
cold water pipes, drain pipes, heating and fire extinguisher pipes

Heating of oil pipes and oil tanks
The ingeniously simple solution prevents heating systems from seizing up. Put an end to blocked oil pipes and congealed oil tanks
in the winter with the OTB system.

No more shovelling during the winter
Ice and snow on ramps, paths, steps and clarifying tanks often lead unnecessarily to dangerous situations
. Reliability even during bad weather is what distinguishes the durable ViaGard system for outdoor surface heating.

Comfort wherever you walk
The floor heating generates cosy and pleasantly warm floors in the kitchen, bathroom, sauna and wherever
marble, ceramic or mosaic tiles are laid. The ready-to-use kit is laid directly on the sub-floor or in the mortar bed.

Our products:
Raychem System-HWAT-Plus, Raychem System-WinterGard, Raychem Syst


The low-cost rain collectors and drain filters for rain water use!

Drainpipe filter, Rain collector, Drainpipe collector, Pipe separator, Rain separator, Rain filter, Swirl filter, Rain sieve, Soil filter, Floating filter, Rain use, Rainwater use, Watering, House water system, Garden pump, Pressure pump


Filter collector: FS


Filtersammler FS
The rainwater from the gutter flowing into the drainpipe is first filtered through the vertical stainless steel filter insert, is collected in the storage space and then fed to the rainwater barrel via the outlet. The unique construction separates out any dirt (larger than 0.44 mm) and automatically washes this into the drain with the rest of the rainwater. Over 90% of the water arriving in the filter collector is filtered and collected based on this principle. The open sections of the gutter drain remain open throughout. There are no constricted parts in the unit's sections behind which rainwater can build up. This is particularly important during heavy rain when large quantities of water flow through. In such cases 50% of filtered water is still fed to the rainwater barrel. Any excess rainwater is channelled directly to the drainpipe.

The anti-corrosion and frost resistance properties are guaranteed. The compact construction makes assembly in almost all rainwater drainpipes simple and easy.

The filter collector and drainpipe filter
collectors from WISY AG come in various versions:
the housing of the WISY filter collector can be made from stainless steel, zinc or copper in the rated width (DN) 100, 87, 80 and 76.
The filter insert is always made from stainless steel.
The casing and the filter insert of the drainpipe filter collector are always made from stainless steel.

The rainwater from the gutter flowing into the drainpipe is first filtered through the vertical stainless steel filter insert using adhesive force, is collected in the storage space and then fed to the rainwater barrel via the outlet (DN 50) to the tank.



Further information:
Regensammler


The unique construction (German patent 3812136) separates out all coarse and fine dirt (larger than 0.28 mm) and automatically washes this into the drain with the rest of the rainwater. Over 90% (efficiency) of the water arriving in the filter collector is filtered and collected based on this principle.

The open sections of the gutter drain remain open throughout. There are no constricted parts in the unit's sections behind which rainwater can build up. This is particularly important during downpours when large quantities of water flow through. Any excess rainwater is channelled directly to the drainpipe.

The anti-corrosion and frost resistance properties are guaranteed. The compact construction makes assembly in almost all rainwater drainpipes simple and easy.

Using a dummy insert it is possible to stop the collection and filtering process. The gutter rainwater then flows directly into the drainpipe. (deactivation of rainwater system).
